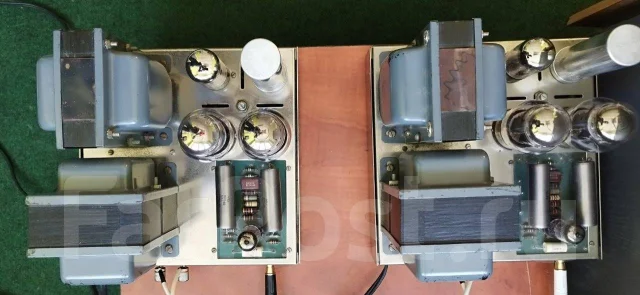

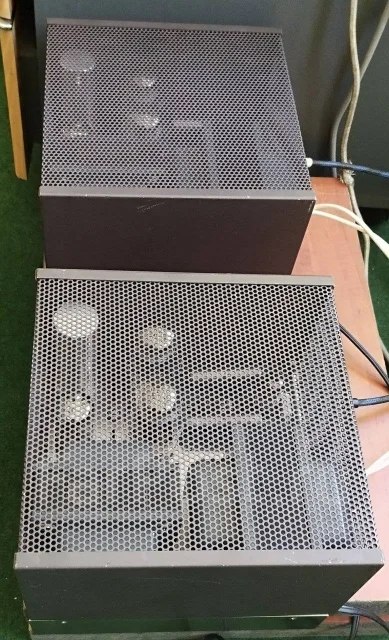

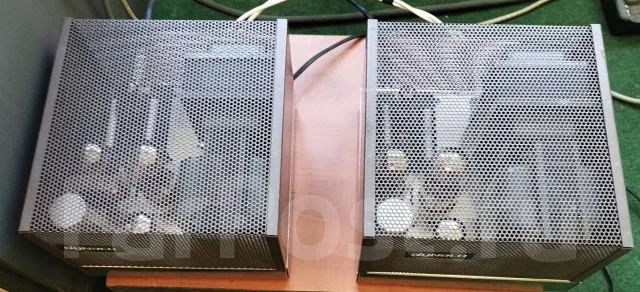

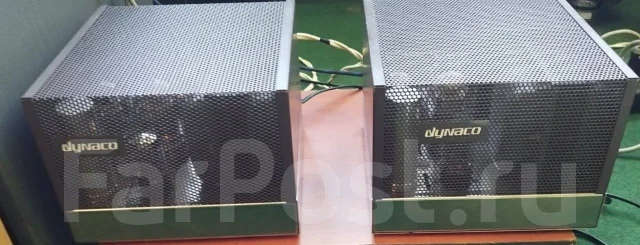

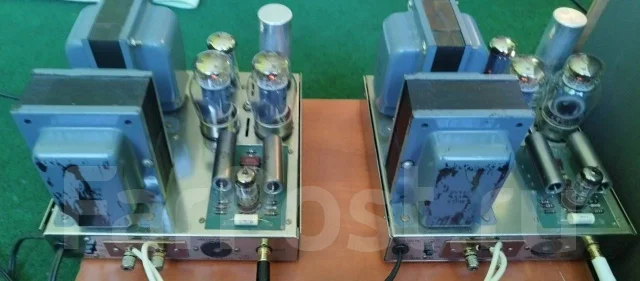

Легендарные моноблоки.В сети полно обзоров и описаний.
Обслужены.
Type Tube type monaural power amplifier
Output 60W (Rated)
140W (peak)
Total harmonic distortion factor 0.5% or Less (60W, 20 Hz ~ 20 kHz)
Cross modulation distortion factor 1% or Less (Rated Output)
0.5% or less (at 50W output)
0.05% or Less (at 1W Output)
Frequency characteristic 6 Hz to 60 kHz ± 0.5 dB
16 Hz ~ 25 kHz ± 0.5 dB (Maximum Output)
Input sensitivity 1.6V(60W)
Signal-to-noise ratio 90 dB or more (at rated output)

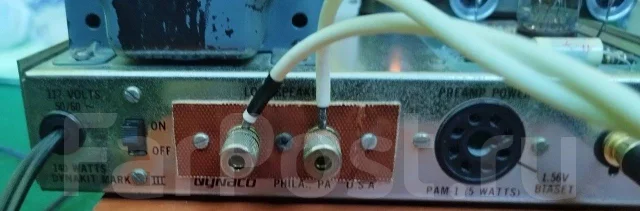

Output impedance 4 ?, 8 ?, 16 ?
Damping factor 15

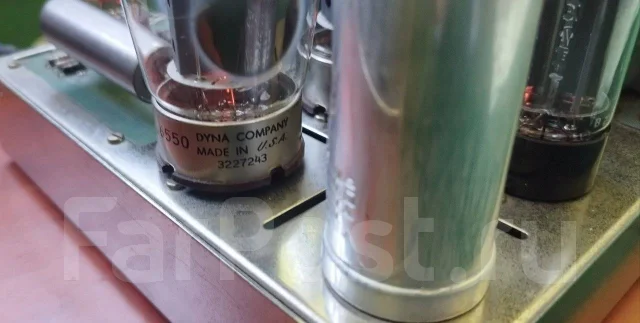

Vacuum tube used 6550 (KT-88) : 2 pieces
6AN8 : 1 Piece

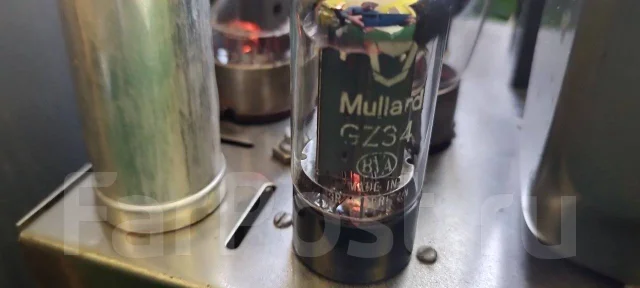

GZ-34 (5AR4) : 1 piece
Power consumption 150W
External dimensions Width 229x Height 190x Depth 229 mm
Weight 13.5 kg (according to 1973 catalog)
12.5 kg (according to 1974 catalog)
11.5 kg (according to 1976 catalog)
