Ресивер за свои деньги топовый. 220V
Пульт в комплекте, ремонту не подвергался.
Работал с акустикой 4.1 Anthony Gallo, использовался не часто, но все время был подключен в розетку в теплой квартире. Состояние идеальное.
Contains a decoder for DTS and Dolby Digital / Dolby Pro Logic.
The device uses a DSP for 24-bit signal processing to provide a wide dynamic range and natural sound quality.
The D/A converter uses a 20-bit DAC for all 6 channels (5.1 channels).

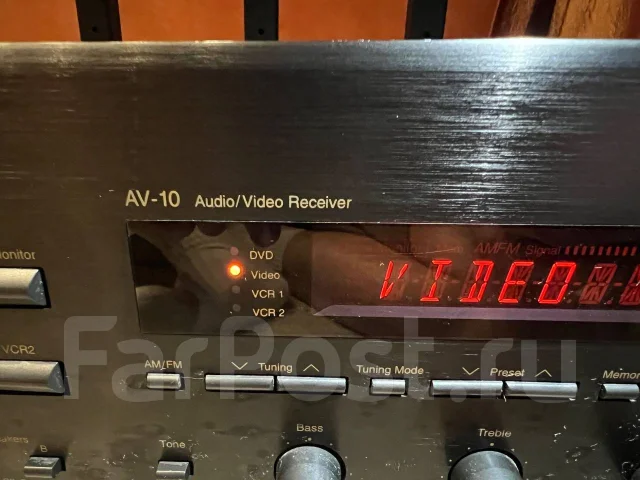

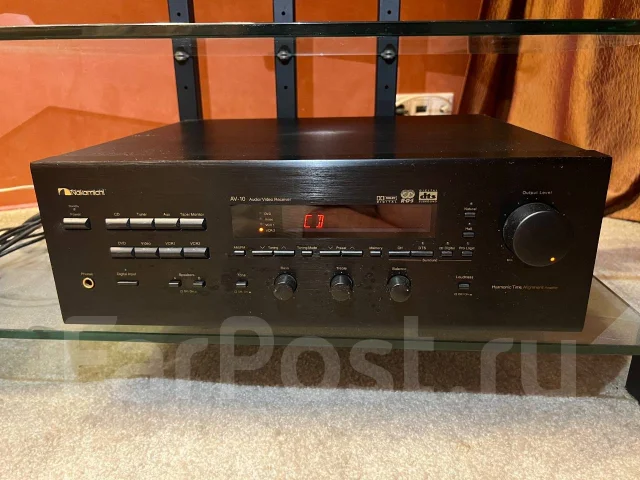

Type AV Receiver
Power Amplifier Unit
Rated output
(20 Hz to 20 kHz, THD0.1%) Stereo : 120W + 120W (8 ?)
Surround : 100Wx5 (8 ?, all channel drive)
Dynamic Power 150Wx5 (8 ?)
Power bandwidth 10 Hz ~ 40 kHz (at 1/2 Rated Output, THD0.1%)
Total harmonic distortion factor 0.1% or Less (20 Hz to 20 kHz at Rated Output)
Cross modulation distortion factor 0.1% or Less (at Rated Output, 60 hz : 7 khz = 4 : 1)
Maximum output current 20A peak (per 1 ch, when 2 ch is driven)
Control Amplifier Section

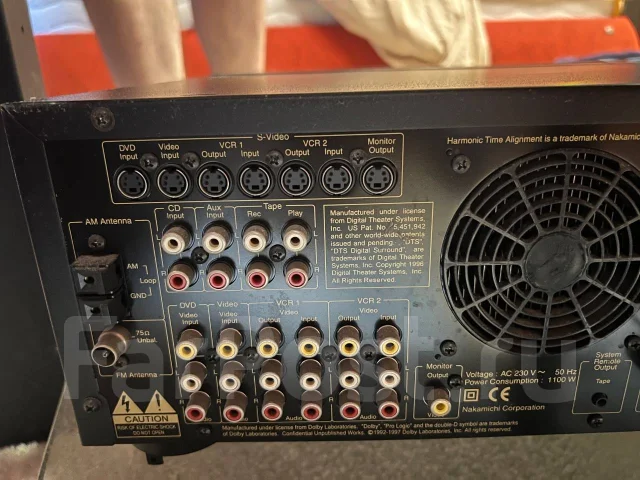

Analog input 7 systems (CD, Aux, Tape, DVD, Video, VCR1, 2)

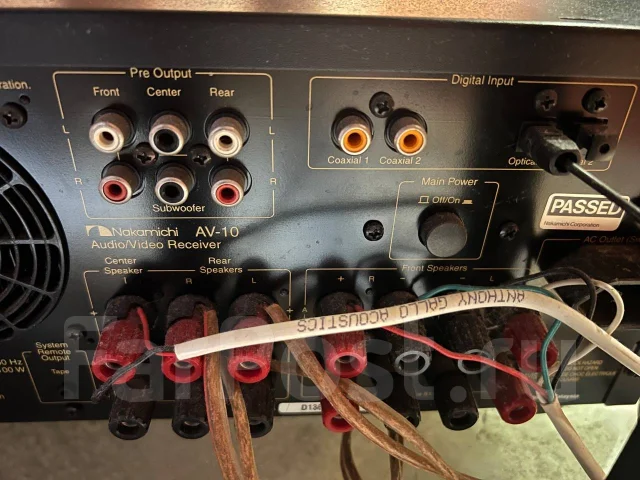

Pre-out Route 6 (Front L/R, Center, Rear L/R, Subwoofer)
Tone control Bass : ± 10 dB (20 Hz)
Treble : ± 10 dB (20 kHz)
Loudness + 10 dB at 20 Hz, + 6 dB at 20 kHz
Digital input Light : 2 systems
Coaxial : 2 systems
Video input Composite Video : 4 channels (DVD, Video, VCR1, 2), coaxial
S-Video (Y/C) : 4 systems (DVD, Video, VCR1, 2), S-Video jack
Video Out Composite Video : Route 3 (VCR1, VCR2, Monitor)
S-Video (Y/C) : Route 3 (VCR1, VCR2, Monitor)

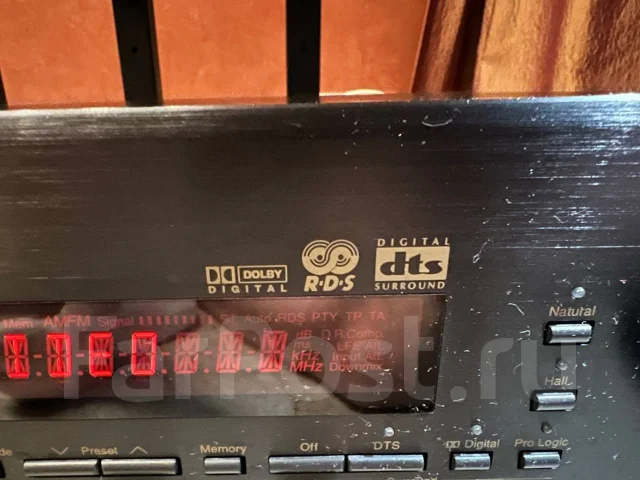

Surround Mode DTS
Dolby Digital
Dolby Pro Logic
Natural
Hall
Speaker mode
Front L/R channels :
Center and Rear L/R channels :
Subwoofer channel :
(SW mode) Large : Full Range Signal
Small : High-pass signal (fc : 80 Hz, 12dB/oct)
Large : Full Range Signal
Small : High-pass signal (fc : 80 Hz, 12dB/oct)
None : No speaker
Yes : low-pass signal (fc : 80 Hz, 12dB/oct)
+ LFE signal (DTS/Dolby Digital)
No : No Subwoofer
Tuner Section
Receiving frequency FM : 76.0 MHz to 90.0 MHz (in 100 kHz steps)
AM : 522 kHz to 1,629 kHz (9 kHz step)
< General>
Pwer 100 VAC, 50Hz/60Hz
Power consumption 1,100W maximum
External dimensions Width 430x Height 140x Depth 370 mm
Weight Approx. 16 kg
Attachment Wireless Remote Control
