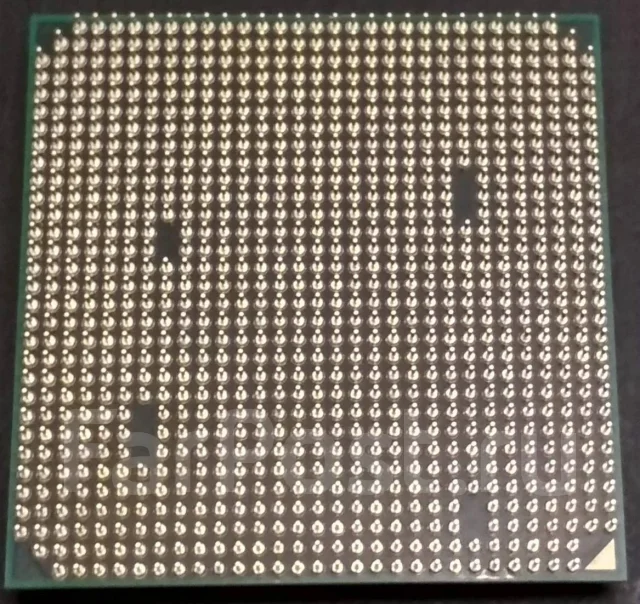

AMD Phenom II X6 1090T Black Edition (HDT90ZFBK6DGR) 6 Ядер Socket AM3 во Владивостоке

Самовывоз с Карьерной, с 8 до 16, только будние дни.

Снят для апгрейда на восьмиядерный. В глюках не замечен.

Характеристики

General information
Type: CPU / Microprocessor
Market segment: Desktop
Family: AMD Phenom II X6
Model number: 1090T
CPU part numbers: HDT90ZFBK6DGR is an OEM/tray microprocessor
Stepping codes: ACBBE CB CCBBE CB
Frequency: 3200 MHz
Maximum turbo frequency: 3600 MHz (3 cores or less)
Bus speed: 667 MHz Memory controller
One 2000 MHz 16-bit HyperTransport link (4 GT/s)
Clock multiplier: 16
Package: 938-pin organic micro-PGA
Socket: Socket AM3
Weight: 1.3oz / 38.1g (CPU)
Fan/heatsink: AV-Z7UH40Q001-5009
Introduction date: April 27, 2010

Architecture / Microarchitecture
Microarchitecture: K10
Platform: Leo
Processor core: Thuban
Core stepping: PH-E0
CPUID: 100FA0
Manufacturing process: 0.045 micron silicon-on-insulator (SOI) technology
Die: 346mm2
Data width: 64 bit
The number of CPU cores: 6
The number of threads: 6
Floating Point Unit: Integrated
Level 1 cache size: 6 x 64 KB 2-way set associative instruction caches
6 x 64 KB 2-way set associative data caches
Level 2 cache size: 6 x 512 KB 16-way set associative exclusive caches
Level 3 cache size: Shared 6 MB 48-way set associative cache
Cache latency [1]:
3 (L1 cache)
14 (L2 cache)
53 (L3 cache)
Multiprocessing: Uniprocessor
Extensions and Technologies

MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSE4a
AMD64 / AMD 64-bit technology
EVP / Enhanced Virus Protection
AMD-V / AMD Virtualization technology
Turbo Core technology

Low power features

Cool'n'Quiet 3.0
Core C1 and C1E states
Package S0, S1, S3, S4 and S5 states

Integrated peripherals / components

Integrated graphics: None
Memory controller: The number of controllers: 1
Memory channels: 2
Channel width (bits): 72
Supported memory: DDR2-1066, DDR3-1333
DIMMs per channel: up to 2
Maximum memory bandwidth (GB/s): 21.3
Other peripherals: HyperTransport 3 technology
Electrical / Thermal parameters
V core:
1.15V - 1.475V (at rated frequency)
1.25V - 1.475V (Turbo Core mode)
1V - 1.225V (Minimum performance state)
V NorthBridge: 1.05V - 1.175V
Maximum operating temperature: 55°C - 62°C
Thermal Design Power: 125 Watt
Notes on AMD Phenom II X6 1090T

The processor has unlocked clock multiplier
On socket AM2+/AM3 platforms in the minimum performance state the processor runs at 800 MHz core voltage and has TDP 53.1 Watt

[1] - These characteristics were measured on a single CPU, and they can vary slightly for other processors with the same model number
