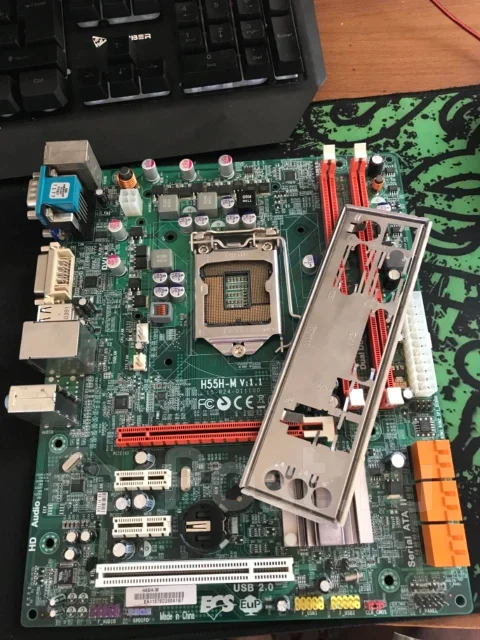

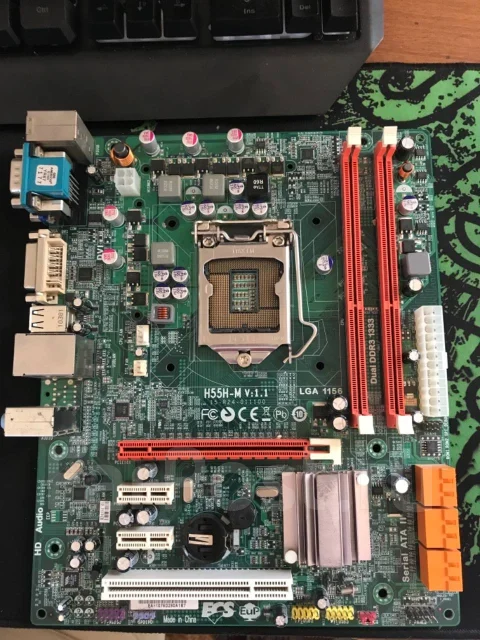

НЕ РАБОТАЕТ , лежала на полке в рабочем состоянии , достал что бы продать по ненадобности но запускаться она не захотела... думаю починить можно
CPU

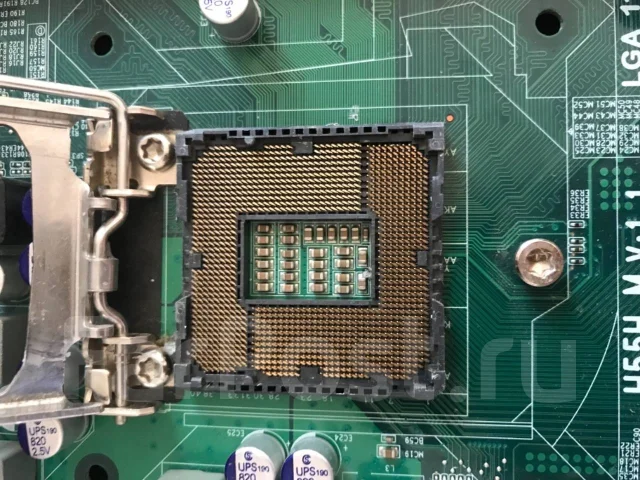

LGA1156 socket for latest Intel Core i7 / Core i5 / Core i3 high-end desktop processors
DMI 2.5GT/s
CHIPSET
Intel® H55 Express Chipset
MEMORY
Dual-channel DDR3 memory architecture
2 x 240-pin DDR3 DIMM socket support up to 8 GB
Supports DDR3 2400 (OC) / 2200 (OC) / 2000 (OC) /1800 (OC) /1600 (OC) / 1333 /1066 DDR3 SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI Express x1 slots
1 x PCI slot
STORAGE
Support by Intel® H55
6 x Serial ATA 3.0Gb/s devices
AUDIO
VIA® VT1705 6-channel audio CODEC
LAN
Atheros AR8131M Gigabit Fast Ethernet Controller
Atheros AR8132M 10/100 Fast Ethernet Controller(Optional)
REAR PANEL I/O
1 x PS/2 keyboard/mouse combo port
6 x USB 2.0 ports
1 x VGA port
1 x DVI Port
1 x COM Port
1 x RJ45 LAN connector
1 x Audio port (3 holes jack)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector
6 x Serial ATA 3Gb/s connectors
1 x Buzzer
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x Clear CMOS header
1 x SPDIF out header
1 x Front panel header
1 x Front panel audio header
1 x Chassis intrusion header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM
Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
CPU voltage adjustable
Supports ACPI revision 3.0 specification
Memory voltage adjustable
FORM FACTOR
Micro-ATX Size, 244mm*200mm
